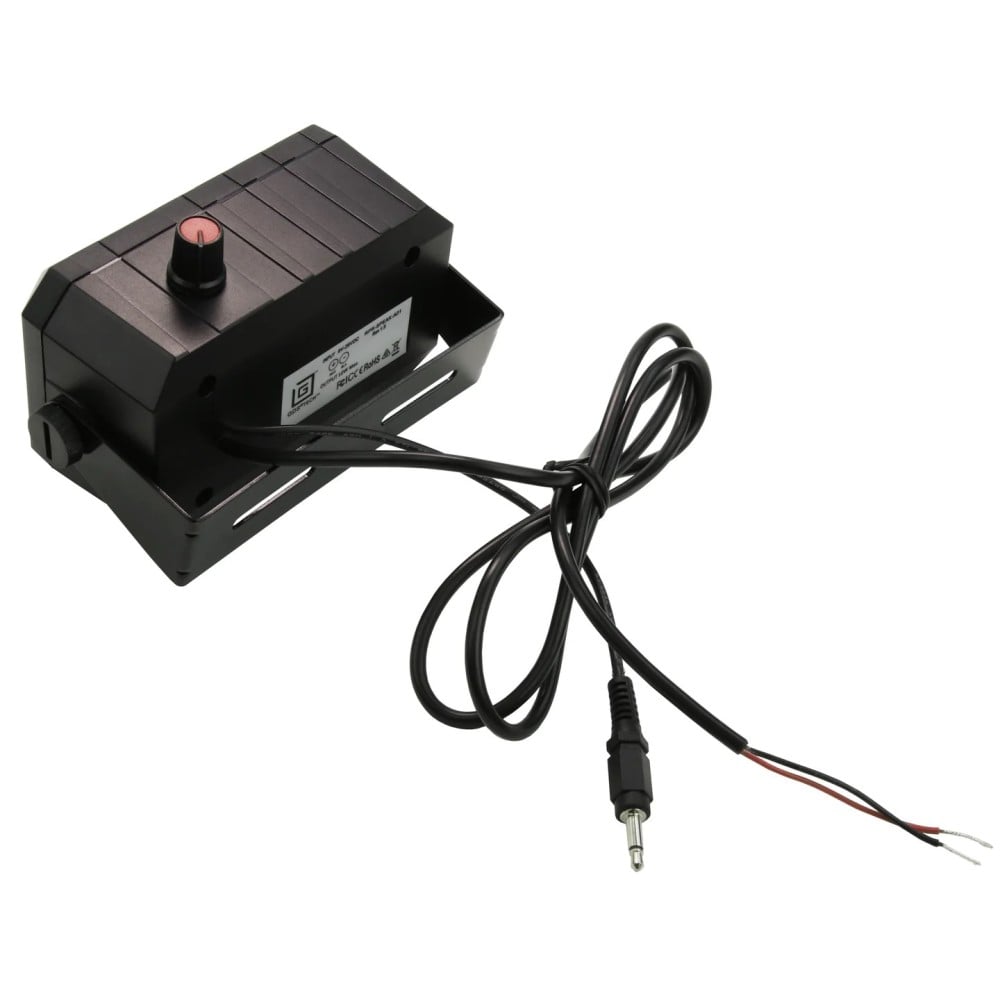

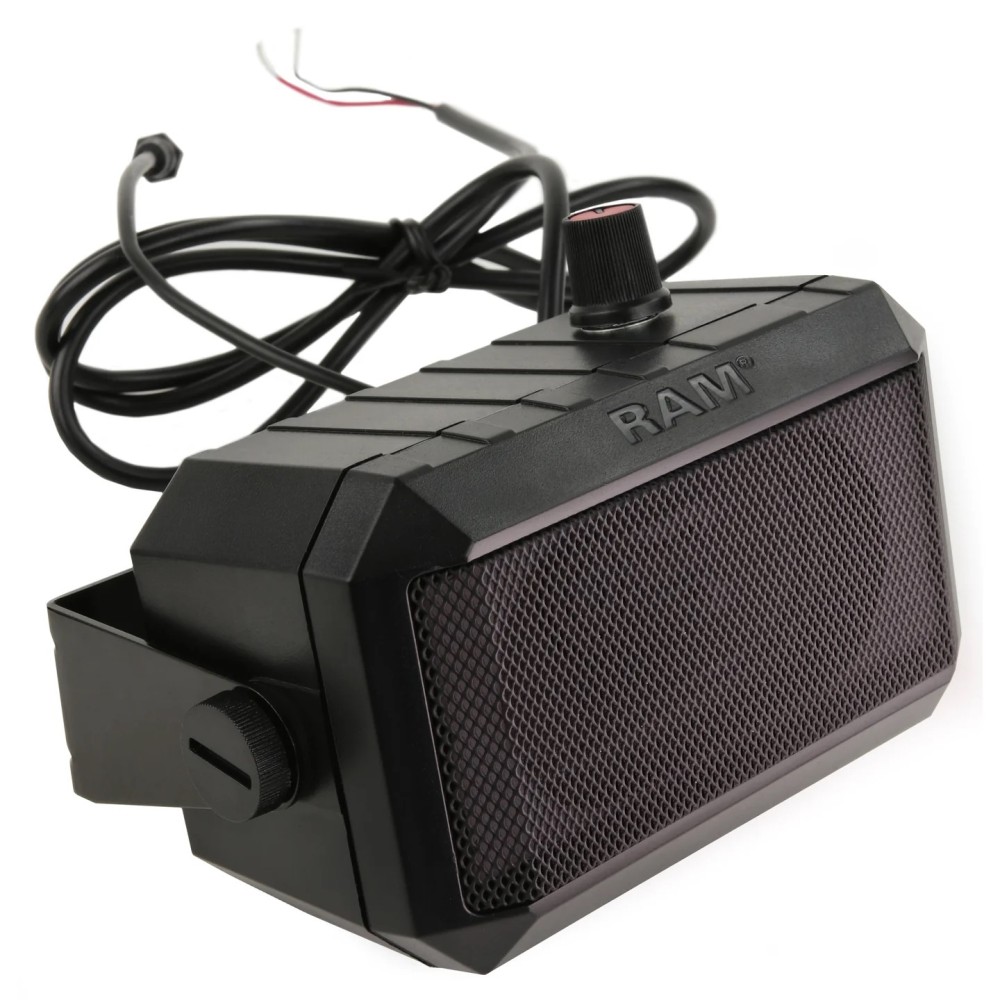

( GDS® Audio™ Amplified Speaker RAM-SPEAK-A01

The GDS® Audio™ amplified speaker can be hardwired into the cab of your vehicle – with no batteries required for power. An adjustable knob allows for up to 93dB of amplified audio feedback from your device, and the speaker includes built-in overcurrent, short circuit, and overvoltage protection. As part of the GDS® Ecosystem™, the speaker can be mounted to any GDS® vehicle dock using the RAM® short bracket adapter or RAM® standard bracket adapter. Each bracket includes hardware to mount the speaker to the bracket, as well as the bracket to your GDS® vehicle dock.

HARDWARE INCLUDED

Mounting Bracket

(2) #8-32 x 5/8" Machine Screws

(2) #8-32 Nylock Nuts

SPEAKER SPECIFICATIONS

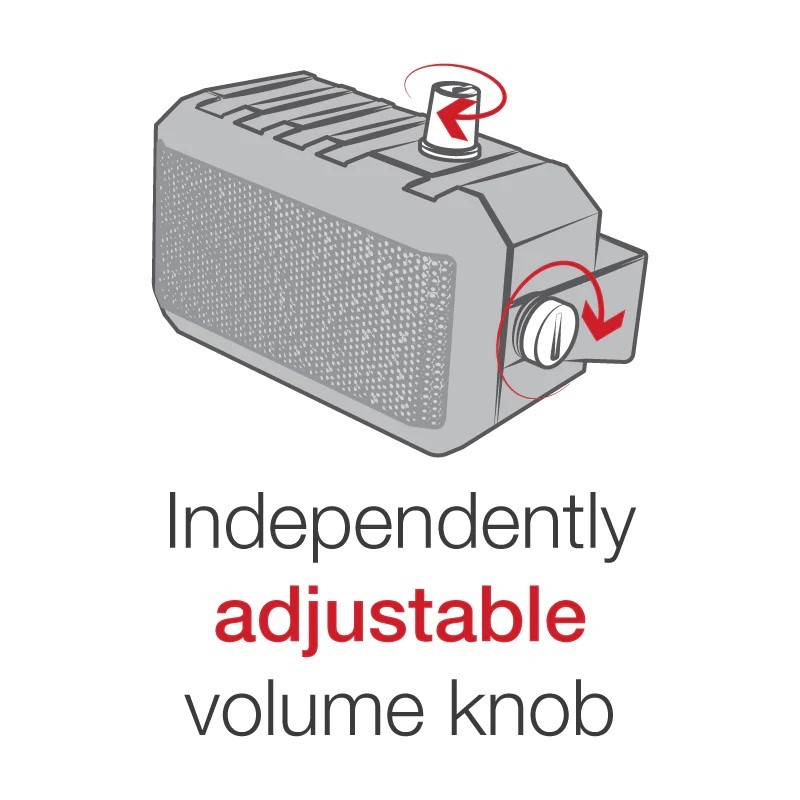

Independently adjustable volume knob

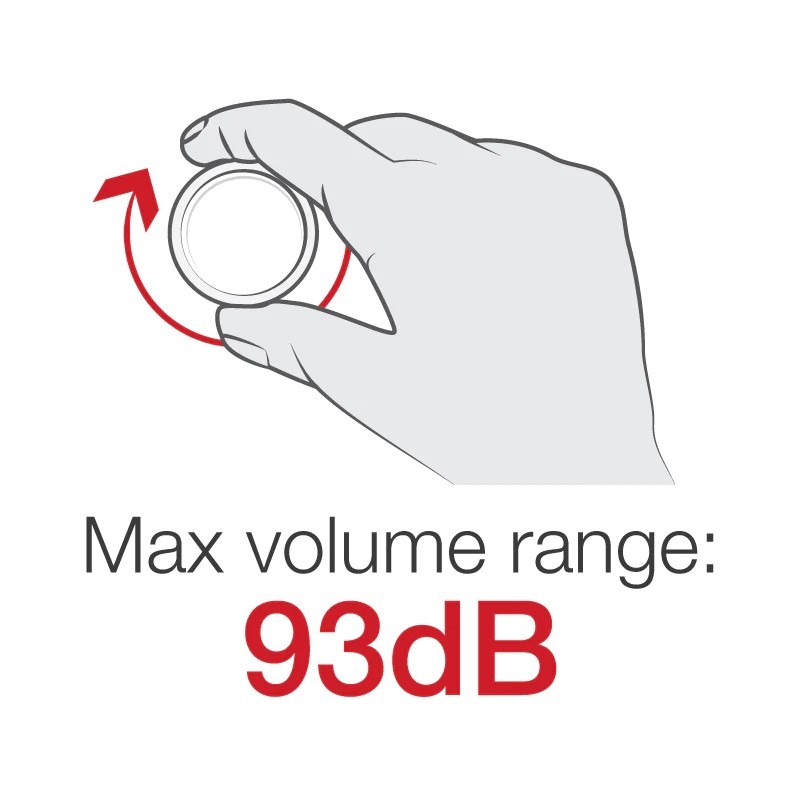

Max volume level: 93dB

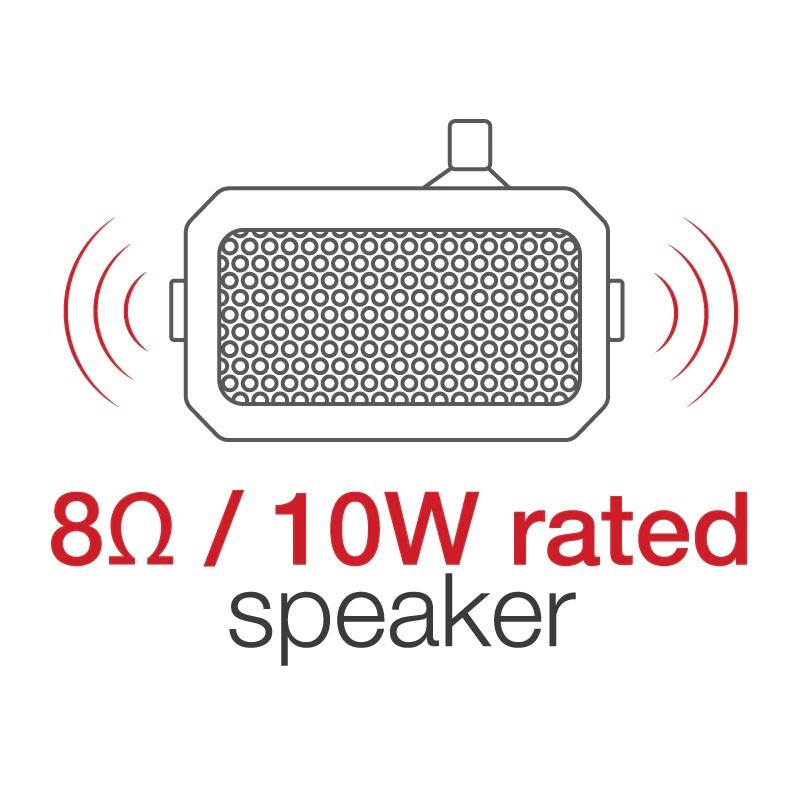

8Ω / 10W rated speaker

PACKAGING TYPE

Box

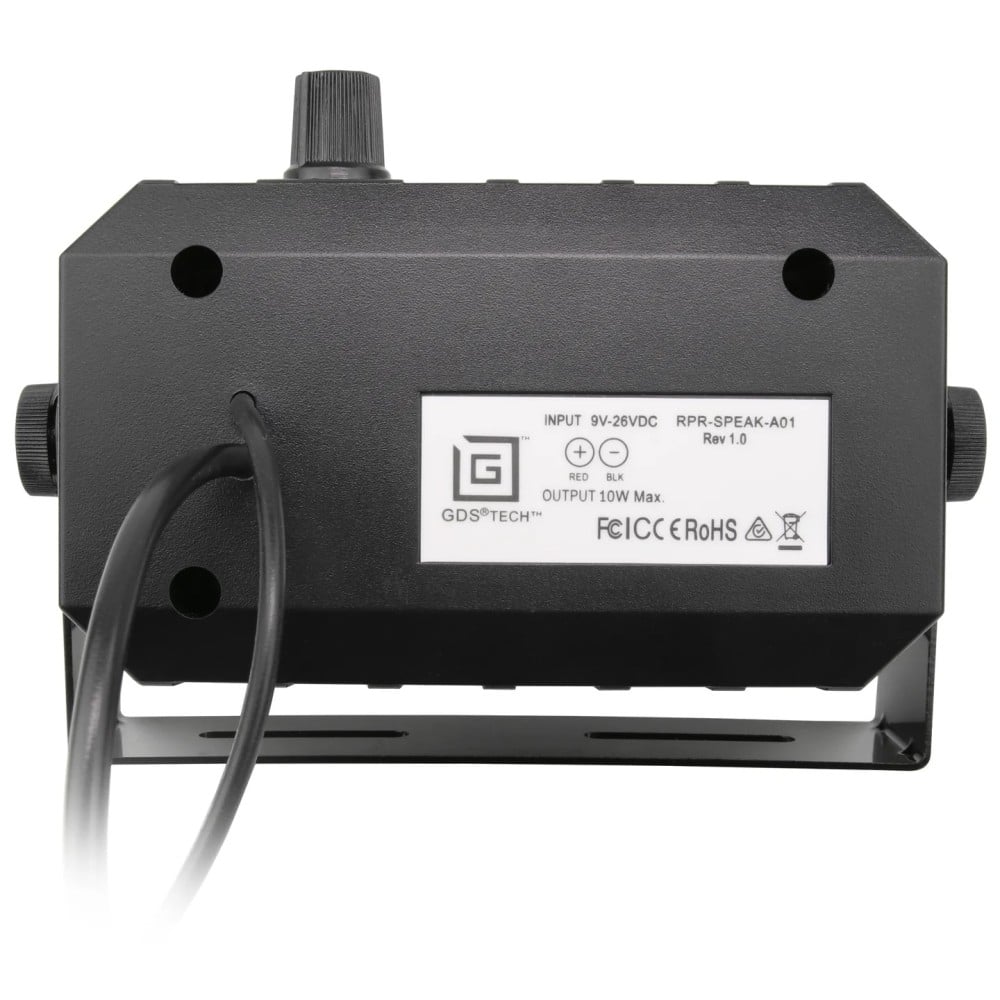

INPUT VOLTAGE

9-26VDC

POWER OUTPUT

Peak Power: 10W

RMS Power: 8W

INPUT CABLE LENGTH

1150mm long red/black power cable

OUTPUT CABLE LENGTH

150mm long audio cable with 3.5mm mono plug jack

OPERATING TEMPERATURE

-20°C to +80°C

STORAGE TEMPERATURE

-40°C to +85°C

REGULATORY

Over current protection, short circuit protection and over volatage protection

CERTIFICATIONS

FCC, IC, RCM, CE, RoHS, WEEE, SAE J1113-5a
